116. Populating Next Right Pointers In Each Node - Explanation

Description

You are given a perfect binary tree where all leaves are on the same level, and every parent has two children. The binary tree has the following definition:

struct Node {
  int val;
  Node *left;
  Node *right;
  Node *next;
}

Populate each next pointer to point to its next right node. If there is no next right node, the next pointer should be set to NULL.

Initially, all next pointers are set to NULL.

Example 1:

Input: root = [1,2,3,4,5,6,7]

Output: [1,#,2,3,#,4,5,6,7,#]

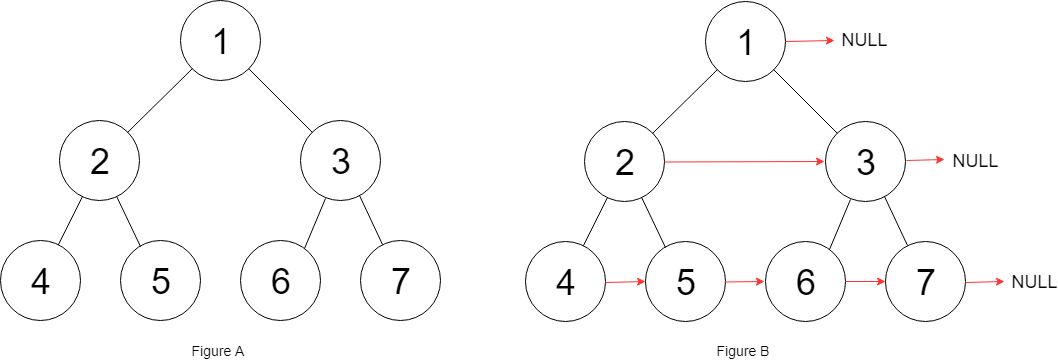

Explanation: Given the above perfect binary tree (Figure A), your function should populate each next pointer to point to its next right node, just like in Figure B. The serialized output is in level order as connected by the next pointers, with '#' signifying the end of each level.

Example 2:

Input: root = [1]

Output: [1,#]

Constraints:

0 <= number of nodes in the tree <= 4095
-1000 <= Node.val <= 1000

Follow-up:

You may only use constant extra space.
The recursive approach is fine. You may assume implicit stack space does not count as extra space for this problem.

Topics

Company Tags

Please upgrade to NeetCode Pro to view company tags.

Prerequisites

Before attempting this problem, you should be comfortable with:

Binary Tree Structure - Understanding nodes with left/right children and tree traversal concepts
Breadth-First Search (BFS) - Level-order traversal using a queue to process nodes level by level
Depth-First Search (DFS) - Recursive tree traversal and tracking depth during recursion
Queue Operations - Enqueue, dequeue, and peeking to implement level-order traversal

1. Breadth First Search

Intuition

Level-order traversal naturally groups nodes by their depth, which is exactly what we need to connect nodes on the same level. As we process each level, the next node in the queue is the right neighbor of the current node.

By tracking the size of each level, we can connect all nodes within a level while avoiding connecting the last node of one level to the first node of the next.

Algorithm

If the root is null, return null.
Initialize a queue with the root.
While the queue is not empty:
- Record the current level size.
- For each node in the current level:
  - Dequeue the node.
  - If it's not the last node in the level, set its next pointer to the front of the queue.
  - Enqueue its left and right children if they exist.
Return the root.

"""
# Definition for a Node.
class Node:
    def __init__(self, val: int = 0, left: 'Node' = None, right: 'Node' = None, next: 'Node' = None):
        self.val = val
        self.left = left
        self.right = right
        self.next = next
"""

class Solution:
    def connect(self, root: 'Optional[Node]') -> 'Optional[Node]':
        if not root:
            return None

        q = deque([root])
        while q:
            levelSize = len(q)
            while levelSize:
                node = q.popleft()
                if levelSize > 1:
                    node.next = q[0]
                if node.left:
                    q.append(node.left)
                if node.right:
                    q.append(node.right)
                levelSize -= 1

        return root

/*
// Definition for a Node.
class Node {
    public int val;
    public Node left;
    public Node right;
    public Node next;

    public Node() {}

    public Node(int _val) {
        val = _val;
    }

    public Node(int _val, Node _left, Node _right, Node _next) {
        val = _val;
        left = _left;
        right = _right;
        next = _next;
    }
};
*/

public class Solution {
    public Node connect(Node root) {
        if (root == null) return null;

        Queue<Node> q = new LinkedList<>();
        q.add(root);

        while (!q.isEmpty()) {
            int levelSize = q.size();
            while (levelSize > 0) {
                Node node = q.poll();
                if (levelSize > 1) {
                    node.next = q.peek();
                }
                if (node.left != null) {
                    q.add(node.left);
                }
                if (node.right != null) {
                    q.add(node.right);
                }
                levelSize--;
            }
        }

        return root;
    }
}

/*
// Definition for a Node.
class Node {
public:
    int val;
    Node* left;
    Node* right;
    Node* next;

    Node() : val(0), left(NULL), right(NULL), next(NULL) {}

    Node(int _val) : val(_val), left(NULL), right(NULL), next(NULL) {}

    Node(int _val, Node* _left, Node* _right, Node* _next)
        : val(_val), left(_left), right(_right), next(_next) {}
};
*/

class Solution {
public:
    Node* connect(Node* root) {
        if (!root) return nullptr;

        queue<Node*> q;
        q.push(root);

        while (!q.empty()) {
            int levelSize = q.size();
            while (levelSize > 0) {
                Node* node = q.front();
                q.pop();
                if (levelSize > 1) {
                    node->next = q.front();
                }
                if (node->left) {
                    q.push(node->left);
                }
                if (node->right) {
                    q.push(node->right);
                }
                levelSize--;
            }
        }

        return root;
    }
};

/**
 * Definition for a binary tree node.
 * class Node {
 *     constructor(val = 0, left = null, right = null, next = null) {
 *         this.val = val;
 *         this.left = left;
 *         this.right = right;
 *         this.next = next;
 *     }
 * }
 */

class Solution {
    /**
     * @param {Node} root
     * @return {Node}
     */
    connect(root) {
        if (!root) return null;

        const q = new Queue();
        q.push(root);

        while (!q.isEmpty()) {
            let levelSize = q.size();
            while (levelSize > 0) {
                let node = q.pop();
                if (levelSize > 1) {
                    node.next = q.front();
                }
                if (node.left) {
                    q.push(node.left);
                }
                if (node.right) {
                    q.push(node.right);
                }
                levelSize--;
            }
        }

        return root;
    }
}

/*
// Definition for a Node.
public class Node {
    public int val;
    public Node left;
    public Node right;
    public Node next;

    public Node() {}

    public Node(int _val) {
        val = _val;
    }

    public Node(int _val, Node _left, Node _right, Node _next) {
        val = _val;
        left = _left;
        right = _right;
        next = _next;
    }
}
*/

public class Solution {
    public Node Connect(Node root) {
        if (root == null) return null;

        Queue<Node> q = new Queue<Node>();
        q.Enqueue(root);

        while (q.Count > 0) {
            int levelSize = q.Count;
            while (levelSize > 0) {
                Node node = q.Dequeue();
                if (levelSize > 1) {
                    node.next = q.Peek();
                }
                if (node.left != null) q.Enqueue(node.left);
                if (node.right != null) q.Enqueue(node.right);
                levelSize--;
            }
        }

        return root;
    }
}

func connect(root *Node) *Node {
    if root == nil {
        return nil
    }

    q := []*Node{root}

    for len(q) > 0 {
        levelSize := len(q)
        for i := 0; i < levelSize; i++ {
            node := q[0]
            q = q[1:]
            if i < levelSize-1 {
                node.Next = q[0]
            }
            if node.Left != nil {
                q = append(q, node.Left)
            }
            if node.Right != nil {
                q = append(q, node.Right)
            }
        }
    }

    return root
}

class Solution {
    fun connect(root: Node?): Node? {
        if (root == null) return null

        val q: Queue<Node> = LinkedList()
        q.offer(root)

        while (q.isNotEmpty()) {
            val levelSize = q.size
            for (i in 0 until levelSize) {
                val node = q.poll()
                if (i < levelSize - 1) {
                    node.next = q.peek()
                }
                node.left?.let { q.offer(it) }
                node.right?.let { q.offer(it) }
            }
        }

        return root
    }
}

class Solution {
    func connect(_ root: Node?) -> Node? {
        guard let root = root else { return nil }

        var queue = [Node]()
        queue.append(root)

        while !queue.isEmpty {
            let levelSize = queue.count
            for i in 0..<levelSize {
                let node = queue.removeFirst()
                if i < levelSize - 1 {
                    node.next = queue.first
                }
                if let left = node.left {
                    queue.append(left)
                }
                if let right = node.right {
                    queue.append(right)
                }
            }
        }

        return root
    }
}

Time & Space Complexity

Time complexity: $O(n)$
Space complexity: $O(\log n)$

2. Depth First Search

Intuition

Using dfs, we can traverse the tree and track the rightmost node seen at each depth. When we visit a node, we connect the previous rightmost node at that depth to the current node, then update the rightmost reference.

A hash map stores the most recently visited node at each depth, allowing us to build the next pointers as we traverse left to right.

Algorithm

Create a hash map to store the rightmost node at each depth.
Define a dfs function that takes a node and its depth:
- If the node is null, return.
- If this depth exists in the map, connect the stored node's next pointer to the current node.
- Update the map with the current node for this depth.
- Recurse on the left child, then the right child (both with depth + 1).
Call dfs starting from the root at depth 0.
Return the root.

"""
# Definition for a Node.
class Node:
    def __init__(self, val: int = 0, left: 'Node' = None, right: 'Node' = None, next: 'Node' = None):
        self.val = val
        self.left = left
        self.right = right
        self.next = next
"""

class Solution:
    def connect(self, root: 'Optional[Node]') -> 'Optional[Node]':
        mp = {}

        def dfs(node, depth):
            if not node:
                return

            if depth not in mp:
                mp[depth] = node
            else:
                mp[depth].next = node
                mp[depth] = node

            dfs(node.left, depth + 1)
            dfs(node.right, depth + 1)

        dfs(root, 0)
        return root

/*
// Definition for a Node.
class Node {
    public int val;
    public Node left;
    public Node right;
    public Node next;

    public Node() {}

    public Node(int _val) {
        val = _val;
    }

    public Node(int _val, Node _left, Node _right, Node _next) {
        val = _val;
        left = _left;
        right = _right;
        next = _next;
    }
};
*/

public class Solution {
    public Node connect(Node root) {
        Map<Integer, Node> mp = new HashMap<>();
        dfs(root, 0, mp);
        return root;
    }

    private void dfs(Node node, int depth, Map<Integer, Node> mp) {
        if (node == null) return;

        if (!mp.containsKey(depth)) {
            mp.put(depth, node);
        } else {
            mp.get(depth).next = node;
            mp.put(depth, node);
        }

        dfs(node.left, depth + 1, mp);
        dfs(node.right, depth + 1, mp);
    }
}

/*
// Definition for a Node.
class Node {
public:
    int val;
    Node* left;
    Node* right;
    Node* next;

    Node() : val(0), left(NULL), right(NULL), next(NULL) {}

    Node(int _val) : val(_val), left(NULL), right(NULL), next(NULL) {}

    Node(int _val, Node* _left, Node* _right, Node* _next)
        : val(_val), left(_left), right(_right), next(_next) {}
};
*/

class Solution {
public:
    Node* connect(Node* root) {
        unordered_map<int, Node*> mp;
        dfs(root, 0, mp);
        return root;
    }

private:
    void dfs(Node* node, int depth, unordered_map<int, Node*>& mp) {
        if (!node) return;

        if (mp.find(depth) == mp.end()) {
            mp[depth] = node;
        } else {
            mp[depth]->next = node;
            mp[depth] = node;
        }

        dfs(node->left, depth + 1, mp);
        dfs(node->right, depth + 1, mp);
    }
};

/**
 * Definition for a binary tree node.
 * class Node {
 *     constructor(val = 0, left = null, right = null, next = null) {
 *         this.val = val;
 *         this.left = left;
 *         this.right = right;
 *         this.next = next;
 *     }
 * }
 */

class Solution {
    /**
     * @param {Node} root
     * @return {Node}
     */
    connect(root) {
        let mp = new Map();

        const dfs = (node, depth) => {
            if (!node) return;

            if (!mp.has(depth)) {
                mp.set(depth, node);
            } else {
                mp.get(depth).next = node;
                mp.set(depth, node);
            }

            dfs(node.left, depth + 1);
            dfs(node.right, depth + 1);
        };

        dfs(root, 0);
        return root;
    }
}

/*
// Definition for a Node.
public class Node {
    public int val;
    public Node left;
    public Node right;
    public Node next;

    public Node() {}

    public Node(int _val) {
        val = _val;
    }

    public Node(int _val, Node _left, Node _right, Node _next) {
        val = _val;
        left = _left;
        right = _right;
        next = _next;
    }
}
*/

public class Solution {
    public Node Connect(Node root) {
        Dictionary<int, Node> mp = new Dictionary<int, Node>();

        void Dfs(Node node, int depth) {
            if (node == null) return;

            if (!mp.ContainsKey(depth)) {
                mp[depth] = node;
            } else {
                mp[depth].next = node;
                mp[depth] = node;
            }

            Dfs(node.left, depth + 1);
            Dfs(node.right, depth + 1);
        }

        Dfs(root, 0);
        return root;
    }
}

func connect(root *Node) *Node {
    mp := make(map[int]*Node)

    var dfs func(node *Node, depth int)
    dfs = func(node *Node, depth int) {
        if node == nil {
            return
        }

        if _, exists := mp[depth]; !exists {
            mp[depth] = node
        } else {
            mp[depth].Next = node
            mp[depth] = node
        }

        dfs(node.Left, depth+1)
        dfs(node.Right, depth+1)
    }

    dfs(root, 0)
    return root
}

class Solution {
    fun connect(root: Node?): Node? {
        val mp = HashMap<Int, Node>()

        fun dfs(node: Node?, depth: Int) {
            if (node == null) return

            if (!mp.containsKey(depth)) {
                mp[depth] = node
            } else {
                mp[depth]!!.next = node
                mp[depth] = node
            }

            dfs(node.left, depth + 1)
            dfs(node.right, depth + 1)
        }

        dfs(root, 0)
        return root
    }
}

class Solution {
    func connect(_ root: Node?) -> Node? {
        var mp = [Int: Node]()

        func dfs(_ node: Node?, _ depth: Int) {
            guard let node = node else { return }

            if mp[depth] == nil {
                mp[depth] = node
            } else {
                mp[depth]!.next = node
                mp[depth] = node
            }

            dfs(node.left, depth + 1)
            dfs(node.right, depth + 1)
        }

        dfs(root, 0)
        return root
    }
}

Time & Space Complexity

Time complexity: $O(n)$
Space complexity: $O(\log n)$

3. Depth First Search (Optimal)

Intuition

In a perfect binary tree, every node has either zero or two children, and all leaves are at the same level. This structure lets us establish next pointers without extra space for tracking.

For any node with children, its left child's next is always its right child. And if the node has a next pointer, its right child's next is the left child of the node's next neighbor. This recursive pattern connects the entire tree.

Algorithm

If the root is null, return it.
If the root has a left child:
- Set the left child's next to the right child.
- If the root has a next pointer, set the right child's next to the next node's left child.
- Recursively connect the left subtree.
- Recursively connect the right subtree.
Return the root.

"""
# Definition for a Node.
class Node:
    def __init__(self, val: int = 0, left: 'Node' = None, right: 'Node' = None, next: 'Node' = None):
        self.val = val
        self.left = left
        self.right = right
        self.next = next
"""

class Solution:
    def connect(self, root: 'Optional[Node]') -> 'Optional[Node]':
        if not root:
            return root

        if root.left:
            root.left.next = root.right
            if root.next:
                root.right.next = root.next.left

            self.connect(root.left)
            self.connect(root.right)

        return root

/*
// Definition for a Node.
class Node {
    public int val;
    public Node left;
    public Node right;
    public Node next;

    public Node() {}

    public Node(int _val) {
        val = _val;
    }

    public Node(int _val, Node _left, Node _right, Node _next) {
        val = _val;
        left = _left;
        right = _right;
        next = _next;
    }
};
*/

public class Solution {
    public Node connect(Node root) {
        if (root == null) return root;

        if (root.left != null) {
            root.left.next = root.right;
            if (root.next != null) {
                root.right.next = root.next.left;
            }

            connect(root.left);
            connect(root.right);
        }

        return root;
    }
}

/*
// Definition for a Node.
class Node {
public:
    int val;
    Node* left;
    Node* right;
    Node* next;

    Node() : val(0), left(NULL), right(NULL), next(NULL) {}

    Node(int _val) : val(_val), left(NULL), right(NULL), next(NULL) {}

    Node(int _val, Node* _left, Node* _right, Node* _next)
        : val(_val), left(_left), right(_right), next(_next) {}
};
*/

class Solution {
public:
    Node* connect(Node* root) {
        if (!root) return root;

        if (root->left) {
            root->left->next = root->right;
            if (root->next) {
                root->right->next = root->next->left;
            }

            connect(root->left);
            connect(root->right);
        }

        return root;
    }
};

/**
 * Definition for a binary tree node.
 * class Node {
 *     constructor(val = 0, left = null, right = null, next = null) {
 *         this.val = val;
 *         this.left = left;
 *         this.right = right;
 *         this.next = next;
 *     }
 * }
 */

class Solution {
    /**
     * @param {Node} root
     * @return {Node}
     */
    connect(root) {
        if (!root) return root;

        if (root.left) {
            root.left.next = root.right;
            if (root.next) {
                root.right.next = root.next.left;
            }

            this.connect(root.left);
            this.connect(root.right);
        }

        return root;
    }
}

/*
// Definition for a Node.
public class Node {
    public int val;
    public Node left;
    public Node right;
    public Node next;

    public Node() {}

    public Node(int _val) {
        val = _val;
    }

    public Node(int _val, Node _left, Node _right, Node _next) {
        val = _val;
        left = _left;
        right = _right;
        next = _next;
    }
}
*/

public class Solution {
    public Node Connect(Node root) {
        if (root == null) return root;

        if (root.left != null) {
            root.left.next = root.right;
            if (root.next != null) {
                root.right.next = root.next.left;
            }
            Connect(root.left);
            Connect(root.right);
        }

        return root;
    }
}

func connect(root *Node) *Node {
    if root == nil {
        return root
    }

    if root.Left != nil {
        root.Left.Next = root.Right
        if root.Next != nil {
            root.Right.Next = root.Next.Left
        }

        connect(root.Left)
        connect(root.Right)
    }

    return root
}

class Solution {
    fun connect(root: Node?): Node? {
        if (root == null) return root

        root.left?.let {
            it.next = root.right
            root.next?.let { next ->
                root.right?.next = next.left
            }

            connect(root.left)
            connect(root.right)
        }

        return root
    }
}

class Solution {
    func connect(_ root: Node?) -> Node? {
        guard let root = root else { return nil }

        if let left = root.left {
            left.next = root.right
            if let next = root.next {
                root.right?.next = next.left
            }

            connect(root.left)
            connect(root.right)
        }

        return root
    }
}

Time & Space Complexity

Time complexity: $O(n)$
Space complexity: $O(\log n)$ for the recursion stack.

4. Breadth First Search (Optimal)

Intuition

Instead of using a queue, we can leverage the next pointers we've already established to traverse each level. We process the tree level by level, using the current level's next pointers to iterate horizontally while setting up the connections for the next level.

Two pointers track our position: one for the current node being processed, and one for the leftmost node of the next level (so we know where to start the next iteration).

Algorithm

Initialize cur to the root and nxt to the root's left child (the start of the next level).
While both cur and nxt are not null:
- Connect cur.left.next to cur.right.
- If cur.next exists, connect cur.right.next to cur.next.left.
- Move cur to cur.next.
- If cur becomes null, move to the next level: set cur to nxt and nxt to cur.left.
Return the root.

"""
# Definition for a Node.
class Node:
    def __init__(self, val: int = 0, left: 'Node' = None, right: 'Node' = None, next: 'Node' = None):
        self.val = val
        self.left = left
        self.right = right
        self.next = next
"""

class Solution:
    def connect(self, root: 'Optional[Node]') -> 'Optional[Node]':
        cur, nxt = root, root.left if root else None

        while cur and nxt:
            cur.left.next = cur.right
            if cur.next:
                cur.right.next = cur.next.left

            cur = cur.next
            if not cur:
                cur = nxt
                nxt = cur.left

        return root

/*
// Definition for a Node.
class Node {
    public int val;
    public Node left;
    public Node right;
    public Node next;

    public Node() {}

    public Node(int _val) {
        val = _val;
    }

    public Node(int _val, Node _left, Node _right, Node _next) {
        val = _val;
        left = _left;
        right = _right;
        next = _next;
    }
};
*/

public class Solution {
    public Node connect(Node root) {
        if (root == null) return null;

        Node cur = root, nxt = root.left;

        while (cur != null && nxt != null) {
            cur.left.next = cur.right;
            if (cur.next != null) {
                cur.right.next = cur.next.left;
            }

            cur = cur.next;
            if (cur == null) {
                cur = nxt;
                nxt = cur.left;
            }
        }

        return root;
    }
}

/*
// Definition for a Node.
class Node {
public:
    int val;
    Node* left;
    Node* right;
    Node* next;

    Node() : val(0), left(NULL), right(NULL), next(NULL) {}

    Node(int _val) : val(_val), left(NULL), right(NULL), next(NULL) {}

    Node(int _val, Node* _left, Node* _right, Node* _next)
        : val(_val), left(_left), right(_right), next(_next) {}
};
*/

class Solution {
public:
    Node* connect(Node* root) {
        if (!root) return nullptr;

        Node* cur = root, *nxt = root->left;

        while (cur && nxt) {
            cur->left->next = cur->right;
            if (cur->next) {
                cur->right->next = cur->next->left;
            }

            cur = cur->next;
            if (!cur) {
                cur = nxt;
                nxt = cur->left;
            }
        }

        return root;
    }
};

/**
 * Definition for a binary tree node.
 * class Node {
 *     constructor(val = 0, left = null, right = null, next = null) {
 *         this.val = val;
 *         this.left = left;
 *         this.right = right;
 *         this.next = next;
 *     }
 * }
 */

class Solution {
    /**
     * @param {Node} root
     * @return {Node}
     */
    connect(root) {
        if (!root) return null;

        let cur = root,
            nxt = root.left;

        while (cur && nxt) {
            cur.left.next = cur.right;
            if (cur.next) {
                cur.right.next = cur.next.left;
            }

            cur = cur.next;
            if (!cur) {
                cur = nxt;
                nxt = cur.left;
            }
        }

        return root;
    }
}

/*
// Definition for a Node.
public class Node {
    public int val;
    public Node left;
    public Node right;
    public Node next;

    public Node() {}

    public Node(int _val) {
        val = _val;
    }

    public Node(int _val, Node _left, Node _right, Node _next) {
        val = _val;
        left = _left;
        right = _right;
        next = _next;
    }
}
*/

public class Solution {
    public Node Connect(Node root) {
        Node cur = root;
        Node nxt = root != null ? root.left : null;

        while (cur != null && nxt != null) {
            cur.left.next = cur.right;
            if (cur.next != null) {
                cur.right.next = cur.next.left;
            }

            cur = cur.next;
            if (cur == null) {
                cur = nxt;
                nxt = cur.left;
            }
        }

        return root;
    }
}

func connect(root *Node) *Node {
    if root == nil {
        return nil
    }

    cur := root
    nxt := root.Left

    for cur != nil && nxt != nil {
        cur.Left.Next = cur.Right
        if cur.Next != nil {
            cur.Right.Next = cur.Next.Left
        }

        cur = cur.Next
        if cur == nil {
            cur = nxt
            nxt = cur.Left
        }
    }

    return root
}

class Solution {
    fun connect(root: Node?): Node? {
        if (root == null) return null

        var cur: Node? = root
        var nxt: Node? = root.left

        while (cur != null && nxt != null) {
            cur.left?.next = cur.right
            cur.next?.let {
                cur.right?.next = it.left
            }

            cur = cur.next
            if (cur == null) {
                cur = nxt
                nxt = cur?.left
            }
        }

        return root
    }
}

class Solution {
    func connect(_ root: Node?) -> Node? {
        guard let root = root else { return nil }

        var cur: Node? = root
        var nxt: Node? = root.left

        while cur != nil && nxt != nil {
            cur?.left?.next = cur?.right
            if let next = cur?.next {
                cur?.right?.next = next.left
            }

            cur = cur?.next
            if cur == nil {
                cur = nxt
                nxt = cur?.left
            }
        }

        return root
    }
}

Time & Space Complexity

Time complexity: $O(n)$
Space complexity: $O(1)$

Common Pitfalls

Connecting Nodes Across Different Levels

When iterating through nodes, it is easy to accidentally set the last node of one level to point to the first node of the next level. Always track the level size or use a marker to know when a level ends, ensuring the rightmost node's next stays null.

Missing the Cross-Parent Connection

For a node's right child, its next should be the left child of the node's next neighbor (if it exists). Forgetting this connection leaves gaps in the horizontal links, breaking the chain between subtrees rooted at different parents.

Assuming the Optimal Solution Works for Non-Perfect Trees

The O(1) space solution leveraging the perfect binary tree structure (every node has 0 or 2 children, all leaves at same level) does not generalize. Applying it to arbitrary binary trees produces incorrect results because the assumptions about child existence fail.
